Lectoclassifier LD 11000.

Lectoclassifier LD 11.000 is ideal to support large volumes of work and is the faster OMR in the merket with up to 11,000 documents per hour, reducing working time, effort and money.

Lectodara 11,000 combines the faster functions with a sophisticated design that makes it unique.

It uses a high precision sensor designed specifically for the reading mark sheets which makes it essential to work within the administrative system, educational and medical.

  Data capture
 Barcode capture (horizontal o vertical).
 Up to DIN A4
 Up to 11.000 documents / hour
 One side or both.
 Data capture and real-time validation (tests, surveys, parts, etc..), Simultaneously capturing barcodes (identification) and validations.
Output Document Sorter with two trays. For example, in a test to separate suspended approved. Or validated and unvalidated.
LCD secreen
 Document counter
 Internal printer (inkjet). You can print a counter on each sheet properly read and validated,: such as proof reading and to Facilitate safe subsequent search and identification. Print date, time reading, eg operator or print examination Obtained marks, etc.

Lectodara 11.000 includes Evaldara software



Multiple applications:


Read, validate and evaluate tests without human intervention.
Read survey results and generate reports automatically calculated for example in Excel.
Read and validate clinical tests, psychological tests, parts working, etc.., Automatically.
Censuses and surveys various validating real-time data from external database
Electoral processes, reading, validating (null, white, etc..) Votes automatically and anonymously.

Multiple services:

 Installation, training and commissioning at the customer's office.
Technical service
Advice and phone support, web, fax immediately.
Assistance in Europe, America and Africa

Optionals:

 Duplex. Second read head to read both sides of document simultaneously.

 Readhead barcode vertically (perpendicular to the direction of reading).



Technical Characteristics

Reading one or both sides
Marks Detection of marks in pencil and pen
Type of marks Detection of circular and rectangular marks
Inteface USB2.0
Buttons 5 buttons
Capacity 500 sheets
Paper quality High quality paper and OCR
Reading speed 11.000 documents /hour
Print Inkjet
Voltage AC100-240V 50-60Hz
Temperature 5-35ºC (41-95F)
Humid 30-80%
Dimensions 800 x 490 x 365 (mm)
Weight 37 Kg

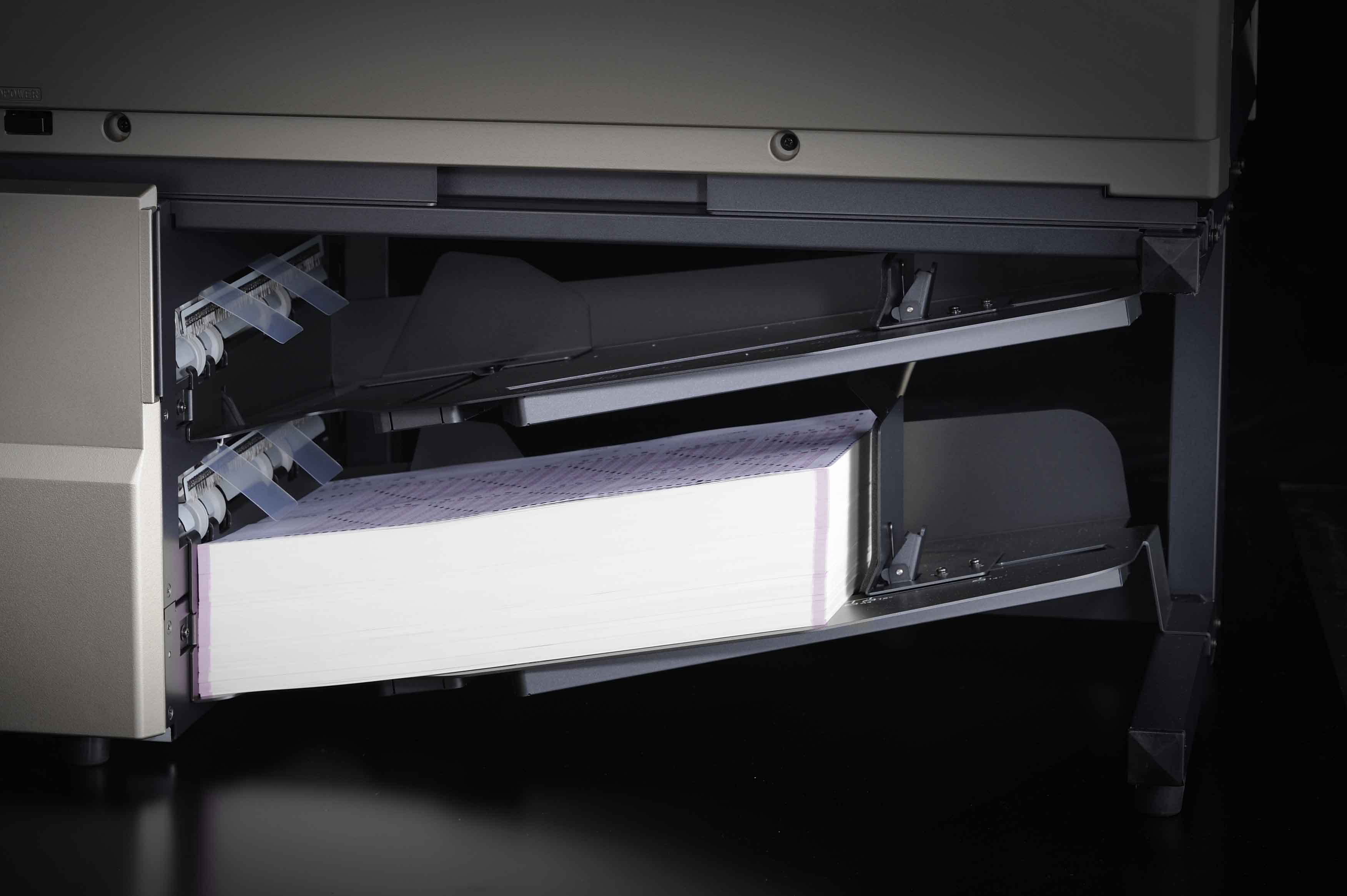

Document output

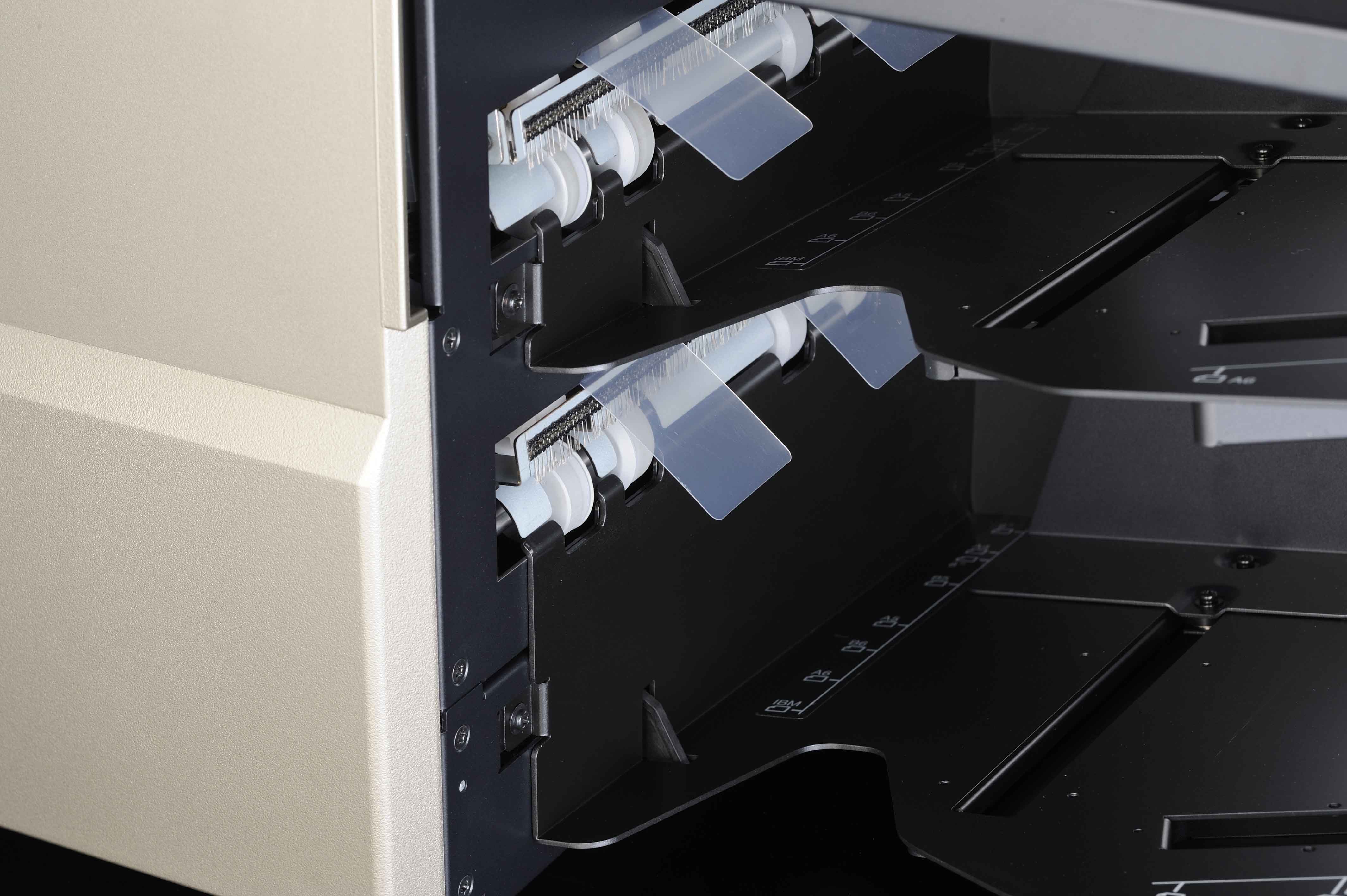

New sensor is installed on the selection tray

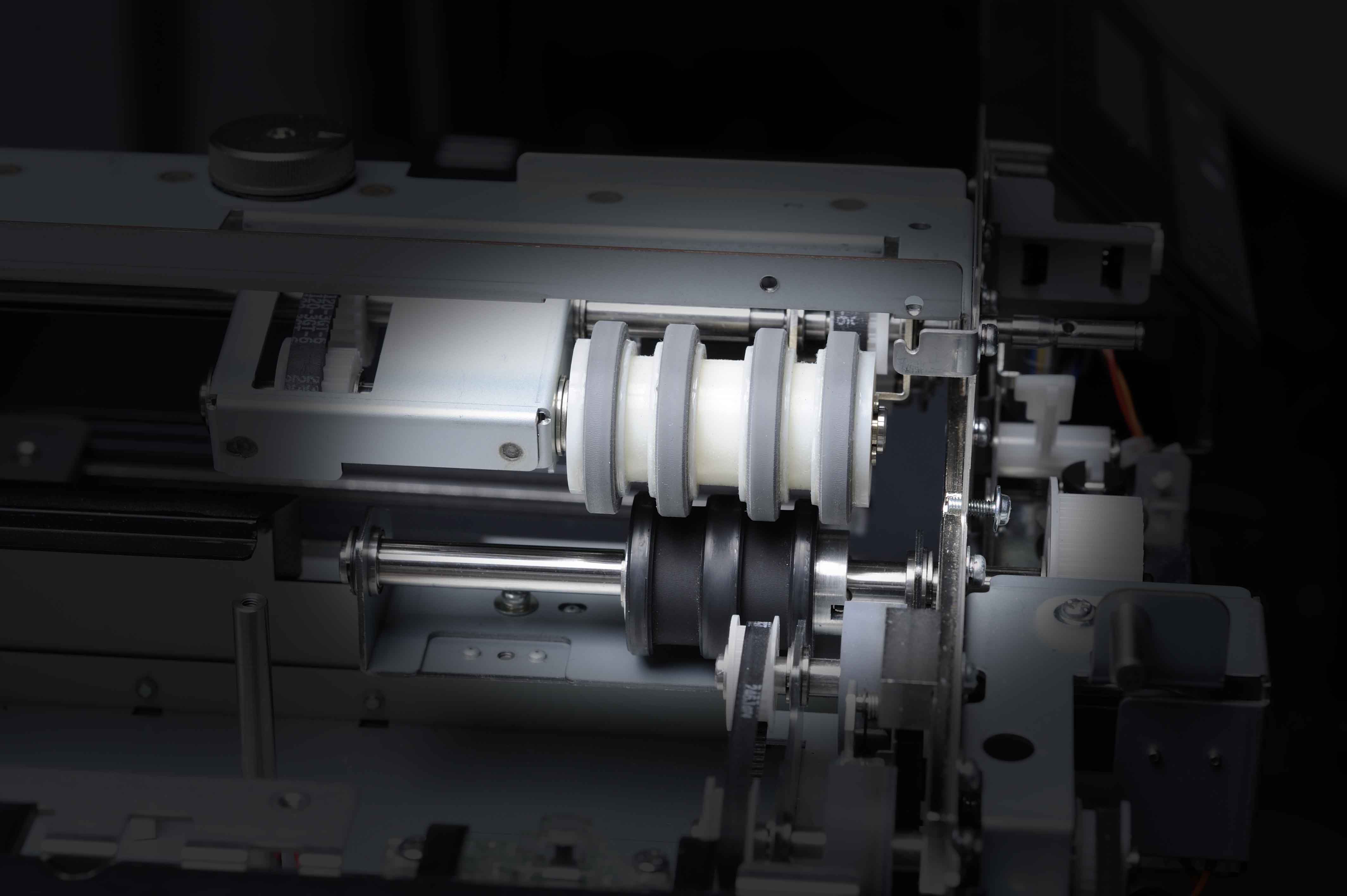

Improved new double feeding prevention rollers

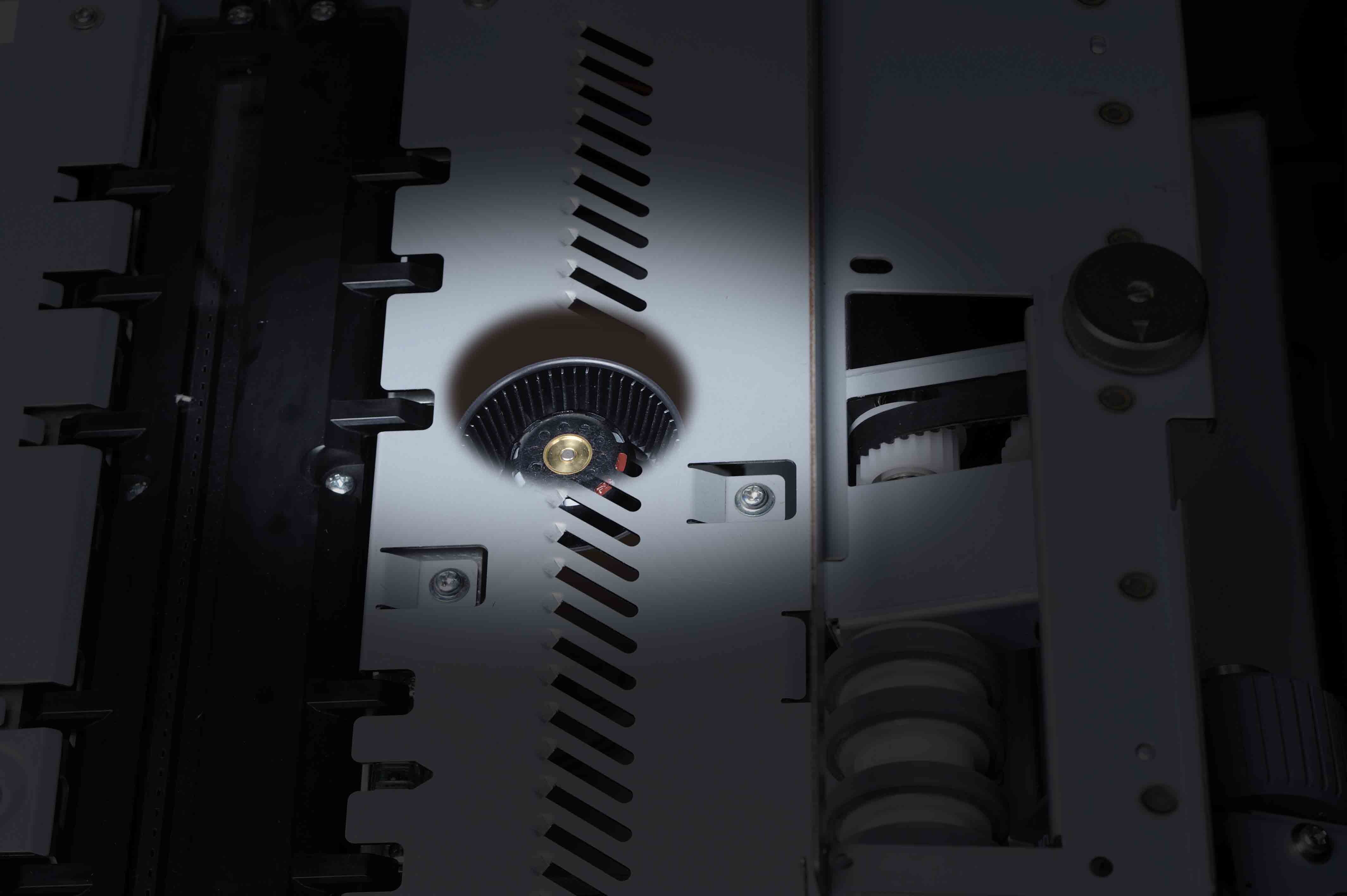

Suction system removes dusts

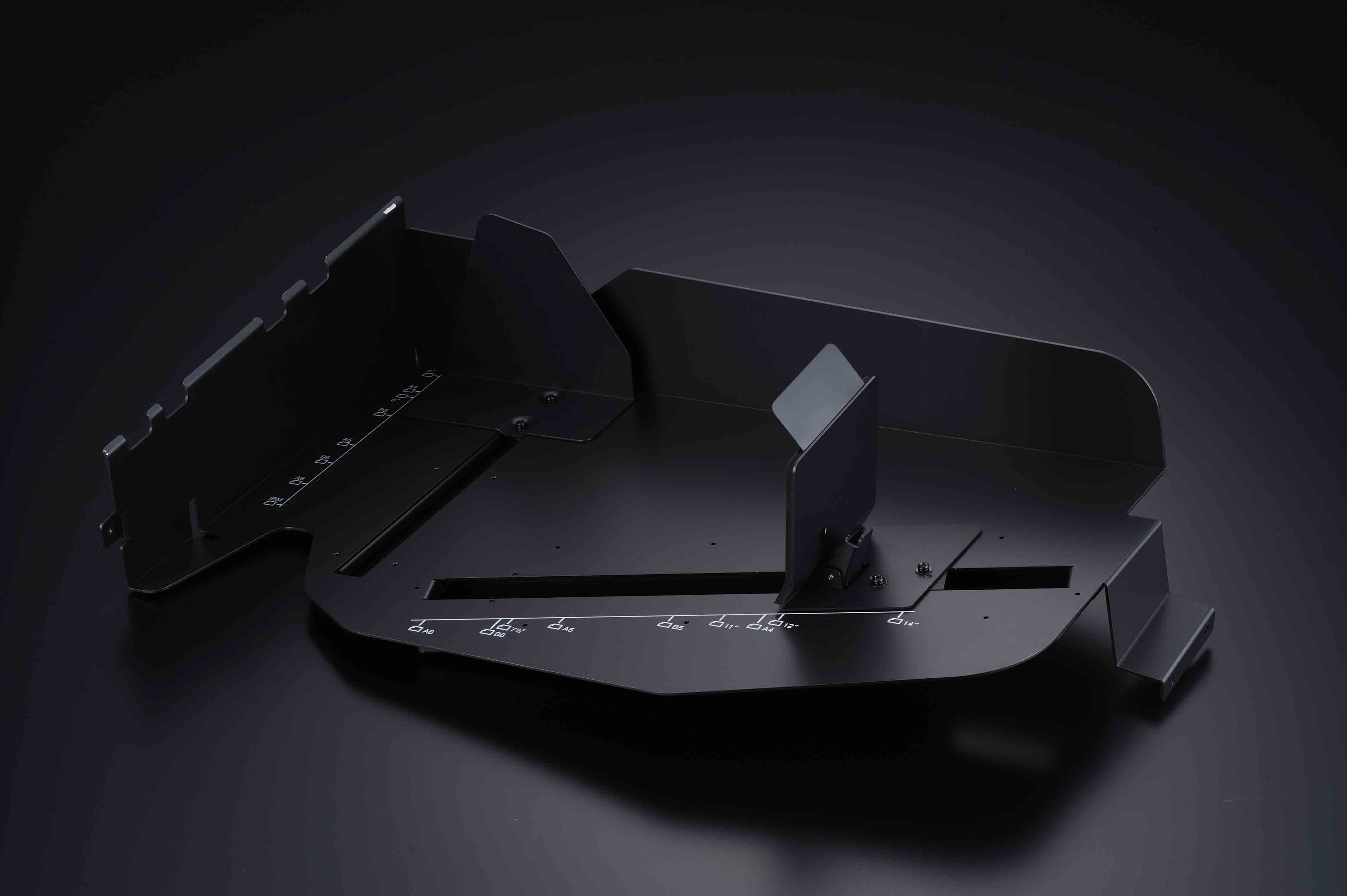

Adjustable sheet stopper

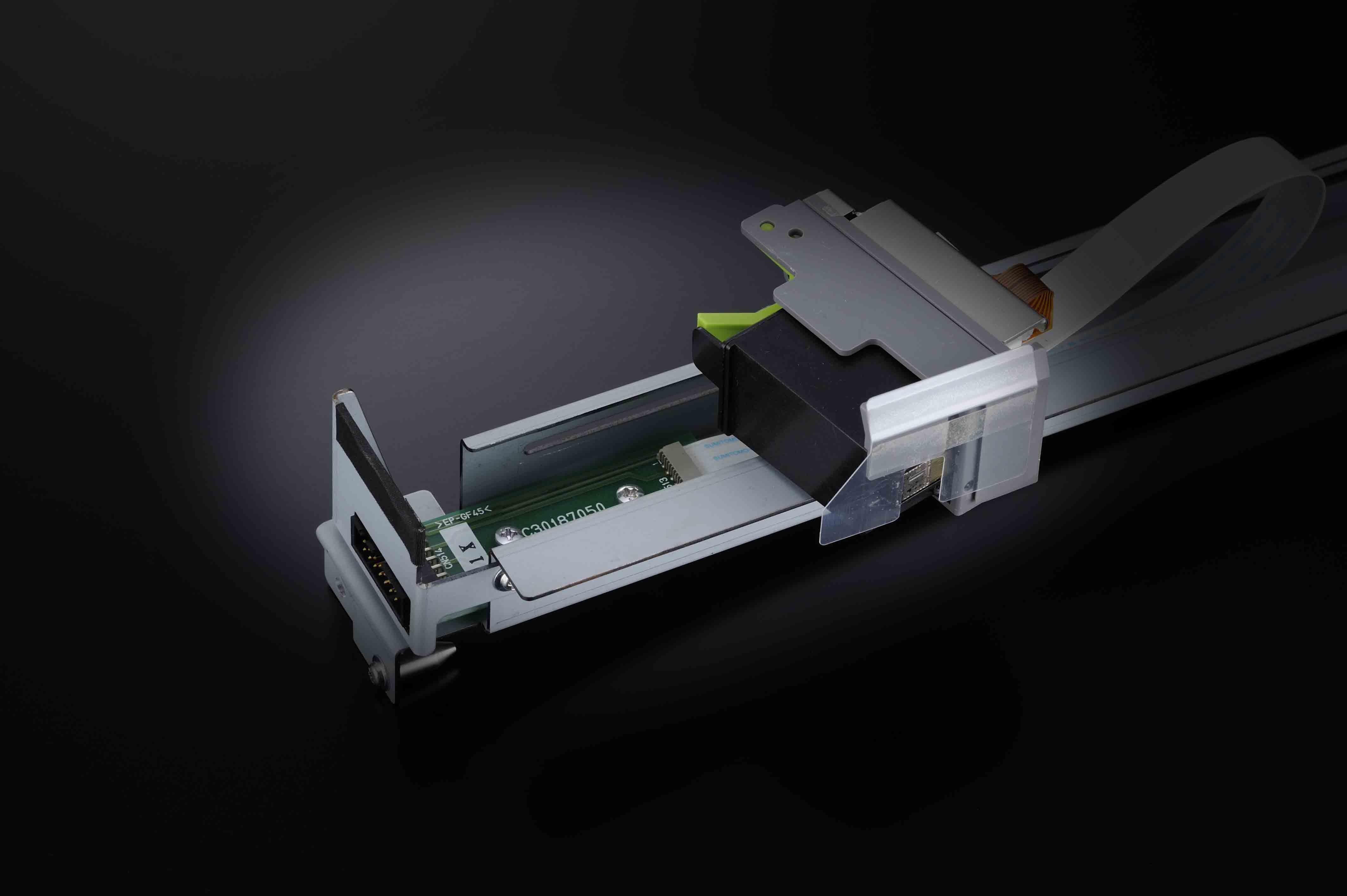

Printer

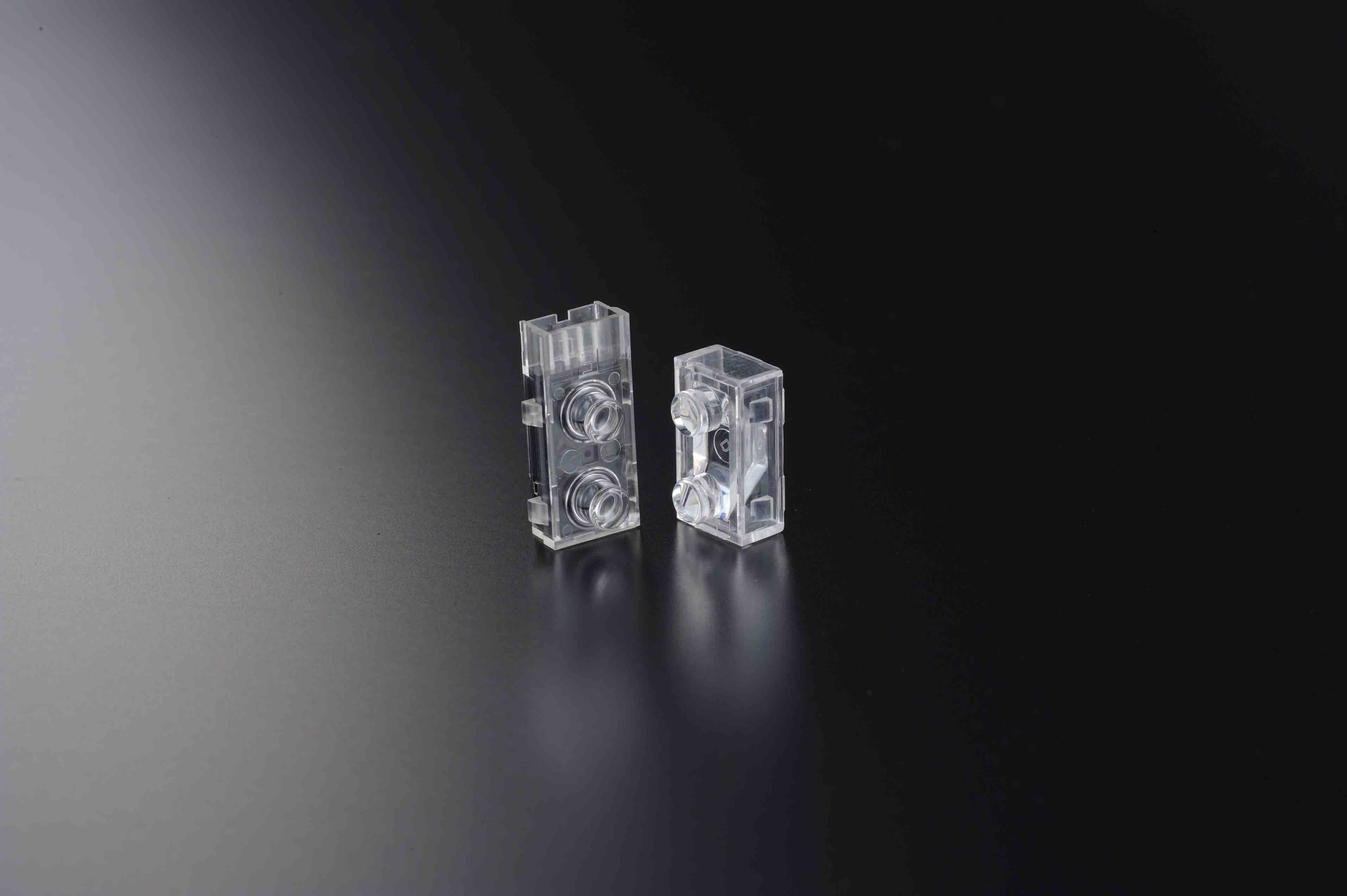

Prism Position Sensors

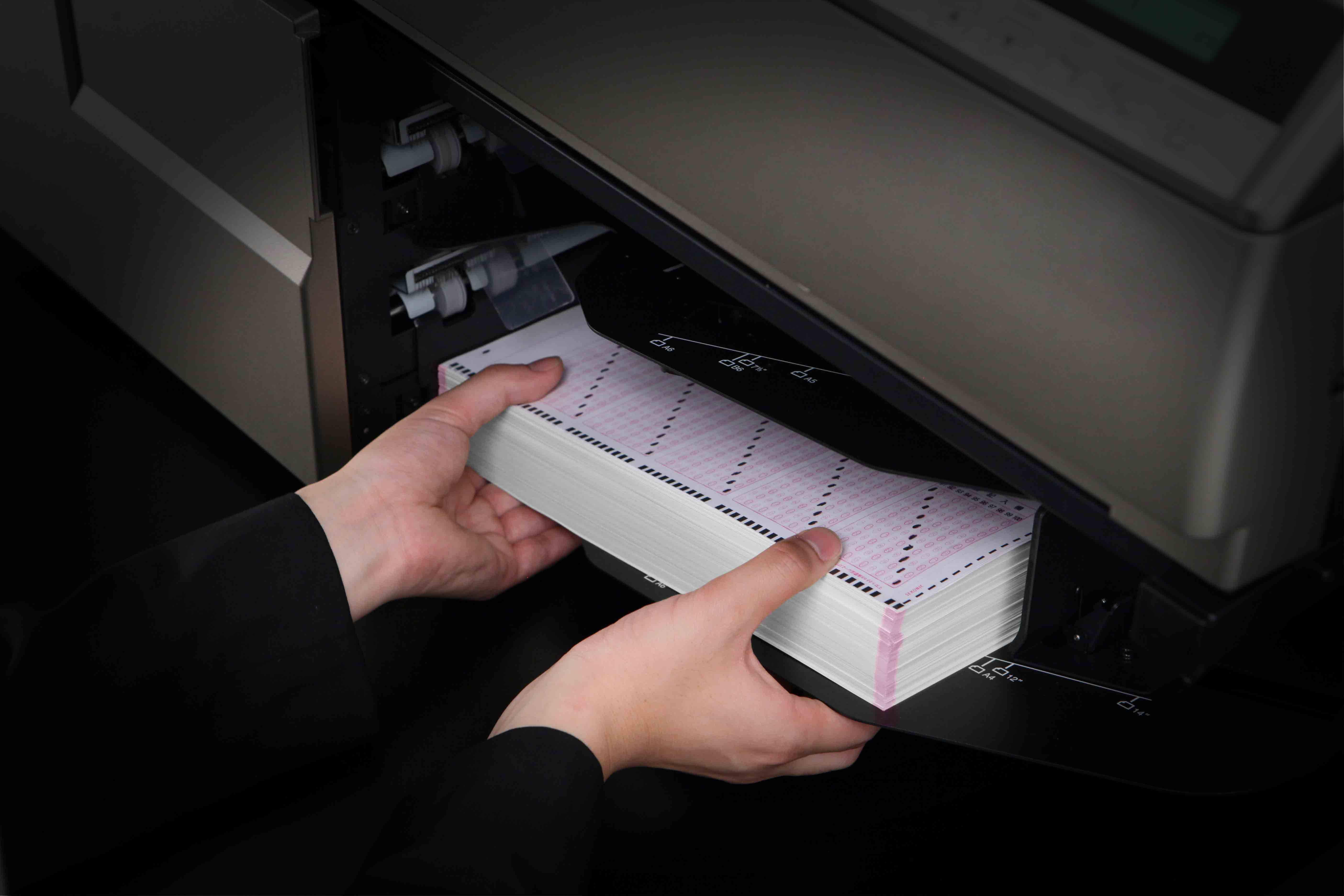

Collection of documents
