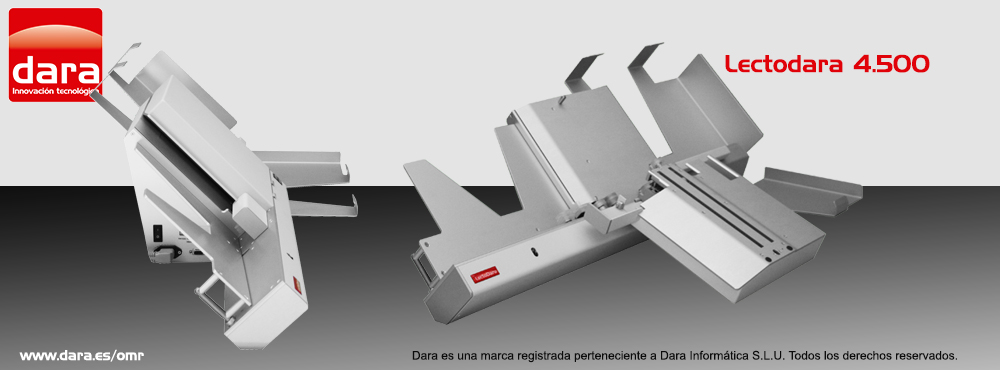

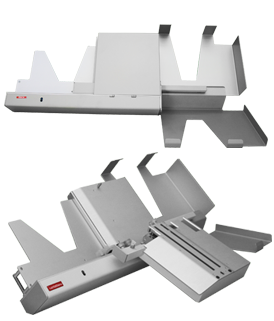

Lectoclassifier LD 4500.
Lectoclassifier with electronic optical reader for free standard design documents.


Model with superior performance, reaching up to 4,500 documents / hour.
Anodized aluminum and stainless steel with two output trays and sheet automatic feeder.

  • Automatic feeder with capacity for more than 100 sheets.
  • Excellent drive system.
  • It has two output trays large capacity, one on the right and one for leaves erroneous rejections made ​​without stopping and in the same direction of the advance of the leaves (that is, no return).
  • multilevel reading, distinguishing erased marks.
  • Read pencil marks, pen, blue and black ink, markings inkjet printer, laser and dot matrix.
  • Accepts documents from 5,7 x16, 5 cm to 21,6 x35, 5 cm and up to 100 lines of 40 marks each.
  • Readhead of 40. Accessible for cleaning and correct any possible jamming (staples, clips, etc..)
  • Works with the computer to accept or reject documents up to the user.
  • Self reading about channels with self-regulation and stabilization of the same every time you turn on the power.
  • Dimensions: 55 x 33 x 22 cm.
  • Weight: 13.6 kg.
  • Readhead including barcode. Read Code 39, Interleaved 2 of 5, UPC A, codabar, Code 128, EAN 8, EAN 13.
  • ADS (Auto Dynamic Scanning).
  • Fully programmable from the PC uses the same software configuration Evaldara all models Lectodara, Serie A and M of our company.
  • Solid design and excellent building materials.
  • Materials environmentally friendly mercury and lead free.
  • Ergonomic design.

LD 4500 includes Evaldara software



Technical Characteristics:

Robust, professional equipment for medium loads. Built with highly resistant materials and high quality. Desktop computer with professional performance.

thickness of documents: 80 - 140 g/qm
Minimum size of sheets: 100 x 40 mm
Maximum size of sheets: 320 x 220 mm.
Readhead: 40 clocks 1/5"
Barcode: Incluided
Second readhead: Optional
Display 2 LEDs
Iniciation: Interface flash
Interface Serie
