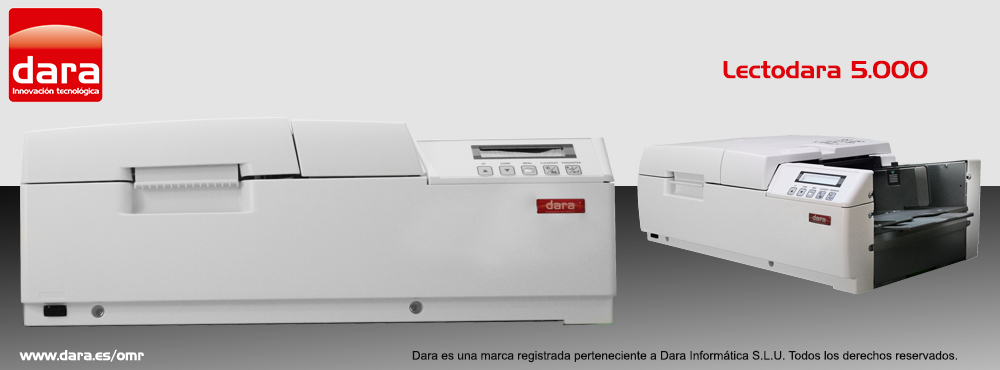

OPTICAL MARK READER Lectodara 5000. Electronic optical reader for free standard documents design
Optical Mark Reader, validator documents in real time reading and sorting documents and customizer. Exceptional solution: Robust, reliable, fast.
 Data capture
Barcode capture (horizontal and vertical).
Image capture b / w and color up to 600 dpi. (LD hybrid model 5000i)
Up to DIN A4
5,000 documents A4 / hour and in inferior sizes up to 6,000
One side or both.
Paper Type: Accepted paper size width: From 6.35 cm (2.5 ") to 9" (22.86 cm). Accepted paper length: From 12.7 cm (5 ") to 14" (35.56 cm)
Data capture and real-time validation (tests, surveys, parts, etc..), Simultaneously capturing barcodes (identification) and validations, and also simultaneously capture the image of the document (document database automatically indexed, ld 5000i)
Output Document Sorter with two trays. For example, in a test to separate suspended and approved. Or validated and unvalidated nonstop reading. etc.
LCD Screen
Document counter
Lectodara 5.000 includes Evaldara software |
 |
Lectodara 5,000 with optional classifier. |
|
|
|
|
Multiple applications:
Read, validate and evaluate tests without human intervention.
Read survey results and generate reports automatically calculated for example in Excel.
Read and validate clinical tests, psychological tests, parts working, etc.., Automatically.
Censuses and surveys various validating real-time data from external database
Electoral processes, reading, validating (null, white, etc..) Votes automatically and anonymously.
Technical Characteristics:
| Optic reader |
Marks of 40 column |
| Feeder |
Automatic |
| Capacity |
500 documents |
| Outbox |
Yes, up to 500 documents |
| Document counter |
Yes |
|
Multiple services:
Installation, training and commissioning at the customer's office.
Technical service.
Advice and phone support, web, fax immediately.
Assistance in Europe, America and Africa.
Optional:
Duplex. Second read head to read both sides of document simultaneously.
Sorter documents according to criteria selected by the user in the software Evaldara.
Printer customized with a text, count, date, etc.
Readhead barcode horizontally (in the sense of reading the document) or vertically (perpendicular to the direction of reading)
|
*: The document speed reading is 550 mm / sec. The actual processing speed depends on the software used, the size and complexity of the document to read, if there is access to database, flat file or third parties as well as the validation and / or formulas to calculate in real time reading imposed by the user . |
|
|
|
|
|
