Lectoclassifier LD 9000.

Without non doubt one of the best OMR in the market.

Robust, reliable and very fast.
Ideal for critical processes with high actual reading speed far superior to other equipment. Ergonomic, easy to use and durable for intensive daily use.

Very high performance model, reaching up to 9,000 documents / hour. Made from durable material High quality anodized aluminum with two output trays and sheet automatic feeder.

  • Semi-industrial equipment.
  • Automatic feeder with capacity for more than 500 sheets..
  • Excellent drive system and limiting the width of the blade to prevent the "pitch" at the time of feeding.
  • It has two output trays large capacity, one on the right and one for leaves erroneous rejections made ​​without stopping and in the same direction of the advance of the leaves (that is, no return).
  • Read pencil marks and blue and black ink.
  • Accepts documents from 5,7 x16, 5 cm to 21,6 x35, 5 cm and up to 100 lines of 40 marks each.
  • Readhead of 40. Accessible for cleaning and correct any possible jamming (staples, clips, etc..)
  • Works with the computer to accept or reject documents
  • Self reading about channels with self-regulation and stabilization of the same every time you turn on the power.
  • Dimensions: 63 x 34 x 30 cm.

Lectodara 9000 includes Evaldara software

Technical Characteristics:

Performance 9.000 doc / hour
Capacity inbox 500-750 max
Paper quallity (DIN 19307 80 - 140 g/qm
Minimal size of the documents 100 x 50 mm
Maximum size of the documents 320 x 220 mm
Readhead OMR 40 columnas 1/5"
High speed Incluided
1. Readhead C.B. incluided
2. Readhead de C.B. optional
C.B. transversal optional
Segunda cabeza lectora omr. optional
C.B. reverso. optional
Printer optional
Display Status Display and Automatic Diagnose 2 LEDs
Classifier. 2 trays
Iniciation interface (Flash)
Interface 2x RS232
Adjustment Automatic or parameters
Warranty 12 months (expandable to 2 or 3 years)

Fully programmable from the PC uses the same software configuration as the Lectodara 2000 and 4500 as well as Serie A and the M12, but with all the unique features of LD 9000.

This equipment can be implemented:

Double head to read documents on both sides simultaneously.

Internal printer to print on each page read.

Readhead or BAR-CODE OCR, barcode.

Security box for transport

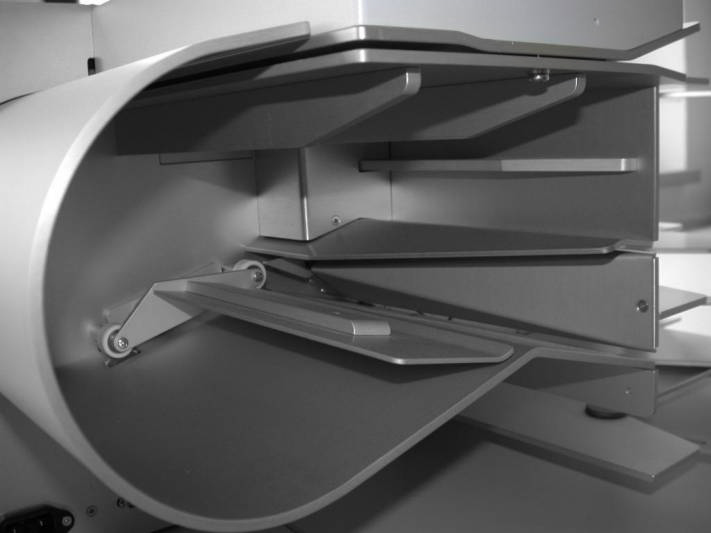

Device for the movement and rotation of the print, and output sorting trays.
Inbox system imprinted with "ride control".

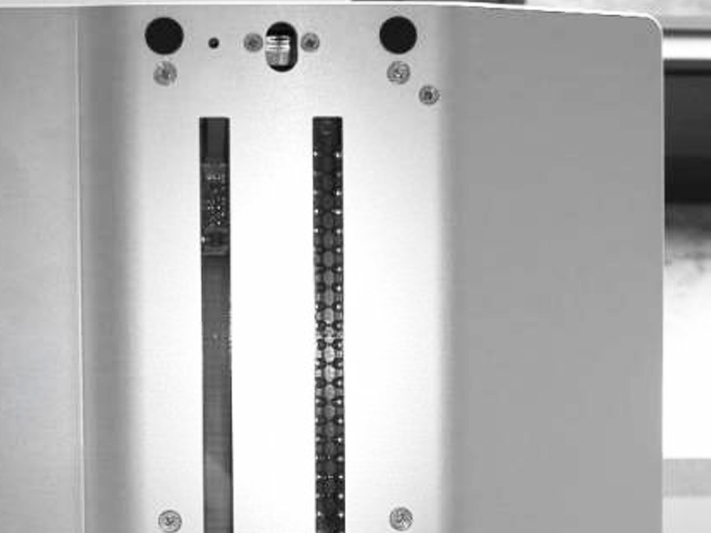

Detail playhead marks (right), and barcode (left).

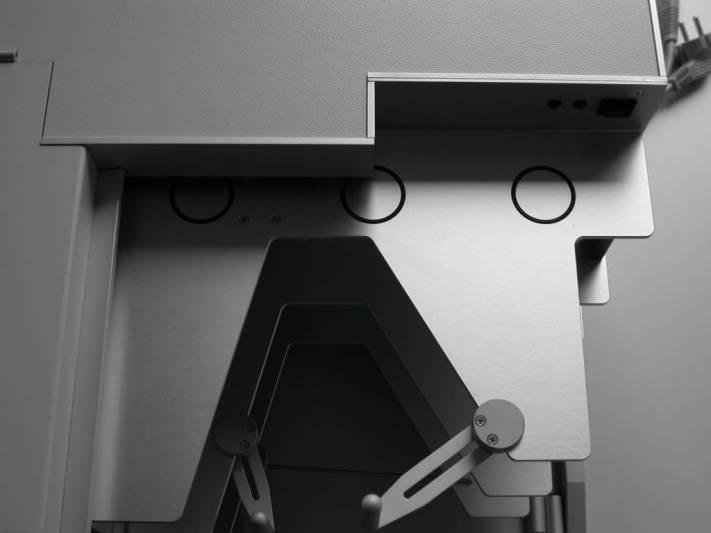

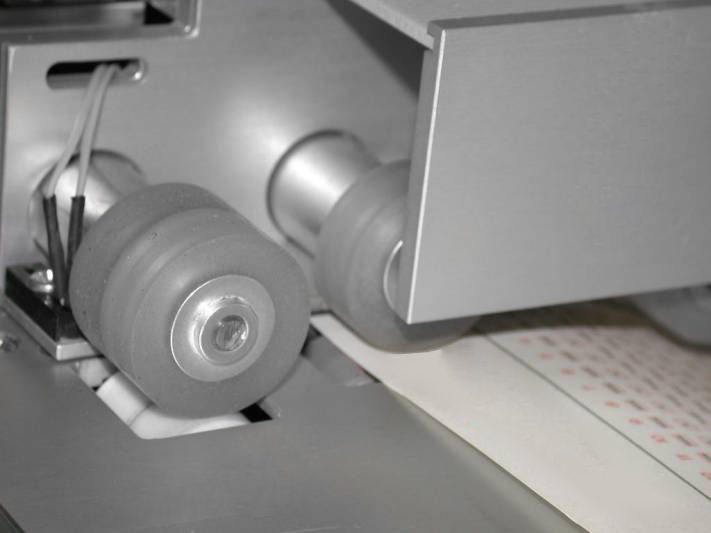

Special bearings for driving the virtually unlimited forms.
Mark sheet in the inbox ready to be read
