Lectoclassifier  LD 9000i.
OMR Lectoclassifier, barcode reader and scanner. ALL on the same equipment.

An optical reader and scanner omr simultaneously, with automatic feeder and document output classifier.

Further optionally can incorporate barcode reading with independent head and printer.

Rugged, reliable and fast.
Productivity, ideal for critical processes with high actual reading speed data capture and image simultaneously. Ergonomic, easy to use and durable for intensive daily use.

Very high performance model, reaching up to 9,000 documents / hour in data capture and 6,000 simultaneous data and image capture. Constructed from durable material High quality anodized aluminum with two output trays and sheet automatic feeder.



Three independent reading heads working simultaneously	Optional printer, to customize the document after reading it and before classification.	Rolls of high quality and high durability in perfect reading.

• Semi-industrial equipment.
• Automatic feeder with capacity for more than 500 sheets.
• Excellent drive system and limiting the width of the blade to prevent the "pitch" at the time of feeding.
• It has two output trays large capacity, one on the right and one for leaves erroneous rejections made without stopping and in the same direction of the advance of the leaves (that is, no return).
• Multilevel reading, distinguishing erased marks.
• Read pencil and ink marks (printer, pen, etc..) Blue and black.
• Accepts documents from 5,7 x16, 5 cm to 21,6 x35, 5 cm and up to 100 lines of 40 marks each.

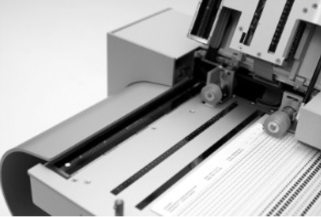

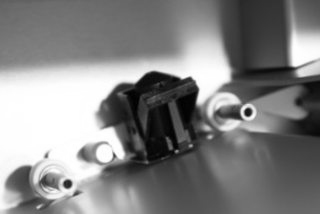

• Three independent reading heads working simultaneously:
  1. - Head barcode reading.
  2. - Head of OMR data capture 40 channels
  3. - CIS Image Readhead (scanner)
  All fully accessible for cleaning and correct any possible jamming (staples, clips, etc..). A single reading, three outcomes: Data, barcode and image.
• Optionally other three heads on back to read both sides of document simultaneously.
• The information is recorded along with the image (in b / w or color) Standard format jpg or tiff. The image can be the whole document or of one or more partial areas.
• Printer, optional, to customize the document after reading it and before classification. Allows you to print on each sheet read prior to their classification. Sequential number, registration, exam score, an input by the user, etc..

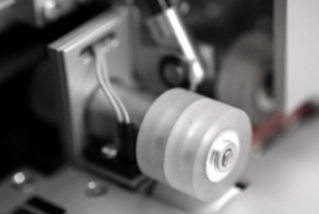

• Rolls of high quality and high durability in perfect reading. The rollers change color with use. The user knows their status and decides to change (very easy) just looking at its color: White translucent - new blue purple-substitution.
• Works in "dialogue" with the computer to accept or reject documents up to the user.
• Fully programmable from the PC. Software uses the same configuration as the Lectodara well as Serie A and the M12, but with all the exclusive features 9000i hybrid LD.
• Self reading about channels with self-regulation and stabilization of the same every time you turn on the power.
• Dimensions: 63 x 36 x 30 cm.
• Weight: 24 kg.
• Other options:
  - Read head barcode transverse to the direction of reading the document.
  - Second reading head for barcodes.
  - MICR: E13B and CMC7
  - Security box.
